Tri axle aluminum fuel tanker semi trailer adopts bottom safety valve anti-rollover safety and stability system, which can monitor the driving condition of tri axle aluminum fuel tanker semi trailer in real time.
When the system detects that the tri axle aluminum fuel tanker semi trailer is about to run out of control, it will apply the braking force to the specific wheel and reduce the vehicle speed at the same time, helping the tri axle aluminum fuel tanker semi trailer drive safely on the correct track, preventing the vehicle from losing control or rolling over.
Tri Axle Aluminum Fuel Tanker Semi Trailer Carry Petrol or Diesel
Tri Axle Aluminum Fuel Tanker Semi Trailer Carry Petrol or Diesel
Dimension: 12000mmx2490mm x3990mm (the exact size depends on the final design.)
Total volume: 45000 liters
Tank Body Material: 5mm
Aluminum Fuel Tanker Semi Trailer End plate: 5mm
Manhole Cover: Aluminum alloy
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Discharging Valve: Diameter is 3 or 4 inch
Compartments: 5 Compartments
Aluminum Fuel Tanker Semi Trailer Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,13T, FUWA brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Aluminum Fuel Tanker Semi Trailer Tire: 12.00R22.5
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers

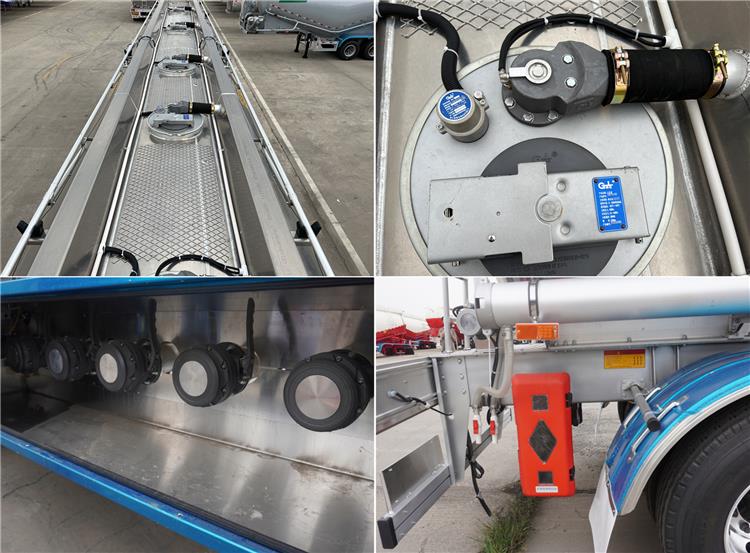

Aluminium fuel tanker semi trailer with safety devices: the manhole is an explosion-proof large cover. The bottom outlet of the tank is equipped with an emergency shut-off valve.
The aluminium fuel tanker semi trailer tank body is automatically welded by an advanced large-scale special welding machine.
Water-filled test equipment Water tank: To ensure the high seal of the aluminium fuel tanker semi trailer tank body and avoid the leaks oil.
The wave board reduces the impact of the liquid on the aluminium fuel tanker semi trailer tanker.
Advanced paint system and polyurethane paint. Appearance is beautiful, use time is above 5 years.
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
