Stainless tanker trailer is just a general term for all these types of tanker trucks and they are called differently in different places depending on the configuration of the medium being transported.
Tank trailler staniless steel 304 the thickness 4 mm and 32000 l 3 axles are available for sale in 1-7 tank tank trucks and can be produced according to customer requirements.
Stainless Tanker Trailer | Tank Trailler Staniless Steel 304 the Thickness 4 mm and 32000 L 3 Axles
Stainless Tanker Trailer | Tank Trailler Staniless Steel 304 the Thickness 4 mm and 32000 L 3 Axles
Dimension: 9800mmx2500mm x3400mm (the exact size depends on the final design.)
Total volume: 32,000 liters
Tank body material: Stainless Steel
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Single compartments
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,13T, TITAN brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5 Chinese brand
Tire: 12.00R22.5 brand can be optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box

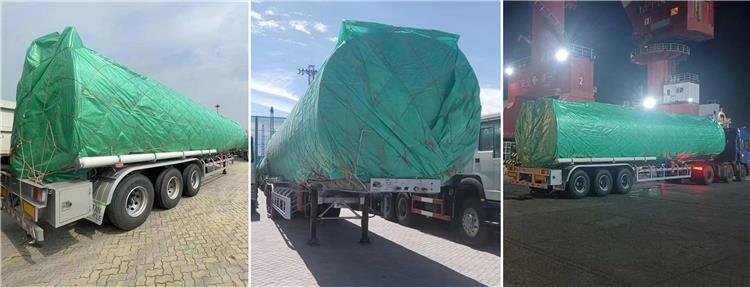

In order to prevent the paint of the stainless tanker trailer from being corroded by sea water, we will spray a layer of wax on the surface of the stainless tanker trailer before transportation.

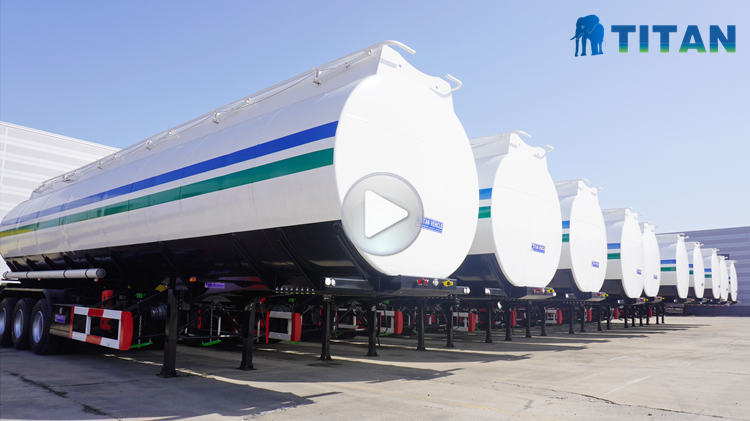

Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
