Fuel tanker trailer dimensions should be equipped with special fire extinguishers, and should be equipped with tow rails and poles. When driving, the tow chain should be in contact with the ground; when refueling or draining, the pole must be inserted into the wet ground.
Fuel tanker trailer dimensions The refueling hole should be tightly sealed, the oil drain valve and oil drain pipe should be free of leakage, the oil tank ventilation hole should be unblocked, the oil pump inlet filter should be cleaned frequently, and the oil delivery hose should be installed immediately after use. cover so that no dirt can enter.

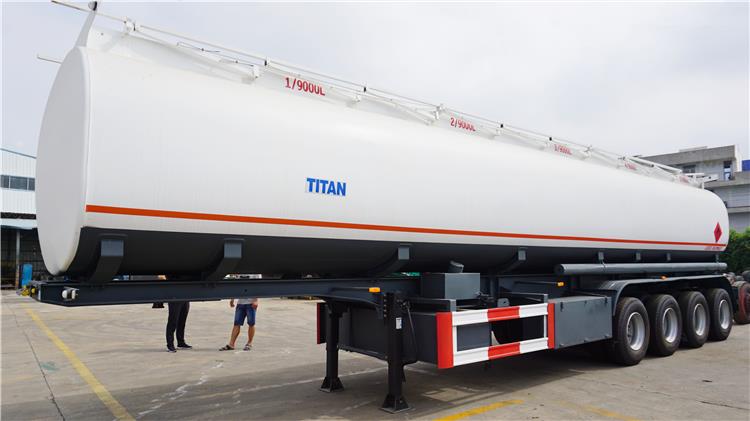

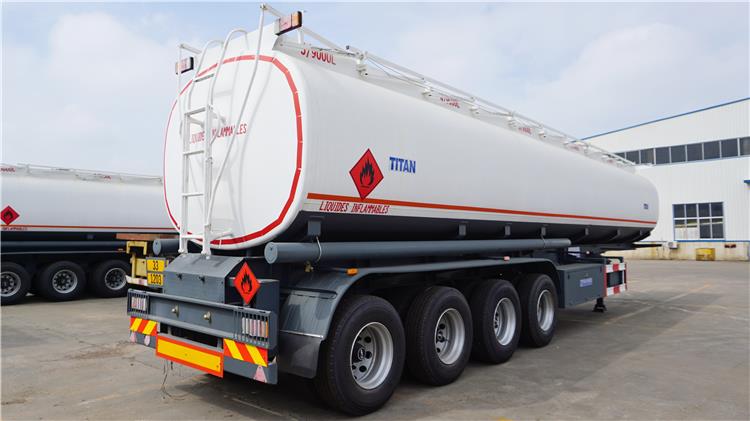

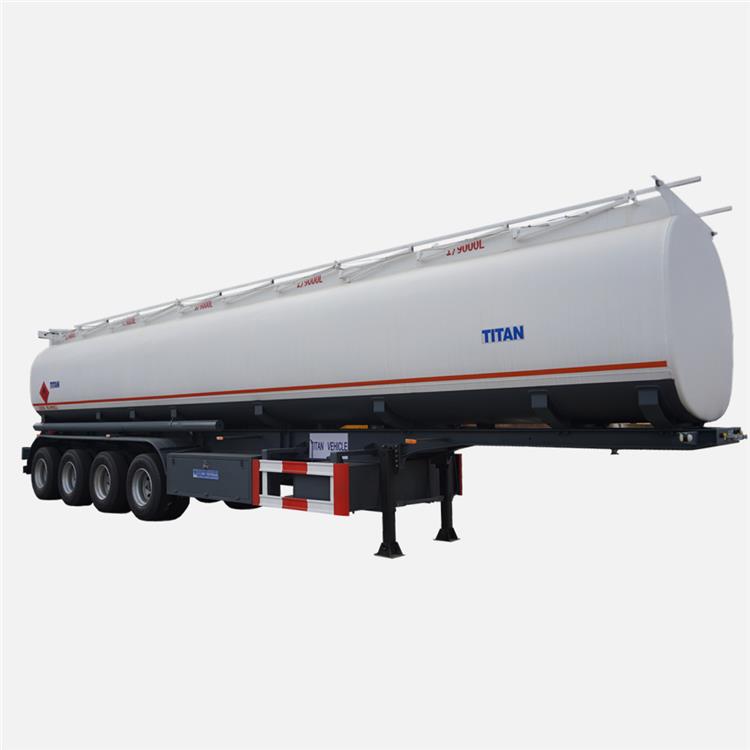

Fuel Tanker Trailer Dimensions Cost | 60,000 Litres Fuel Tanker for Sale in Nigeria
Fuel Tanker Trailer Dimensions Cost | 60,000 Litres Fuel Tanker for Sale in Nigeria
Fuel Tanker Trailer Dimensions Cost | 60,000 Litres Fuel Tanker for Sale in Nigeria
Dimension: 11500mm * 2500mm *3700mm
Total volume(L): 60,000 L
Tank Body Material: Q235 carbon steel
End plate: Q235 carbon steel
Manhole Cover: Carton steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Discharging Valve: Diameter is 3 or 4 inch
Compartments: 6 Compartment
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 4 axles,13T,FUWA
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Diesel Tanker Price Suspension: Ari Suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5Chinese brand
Tire: 12.00R22.5
ABS: Optional
Diesel Tanker Price Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box

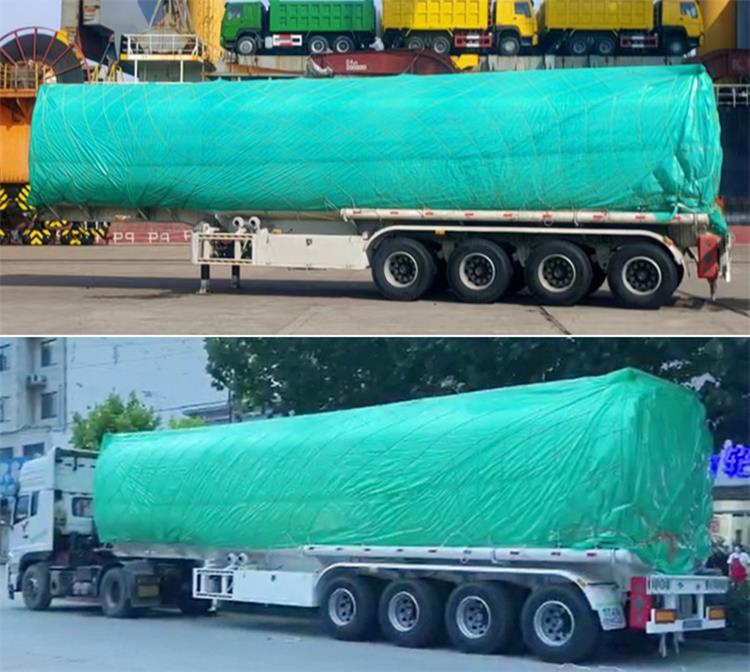

Shipping Terms: By bulk cargo, RORO or 40HQ containers

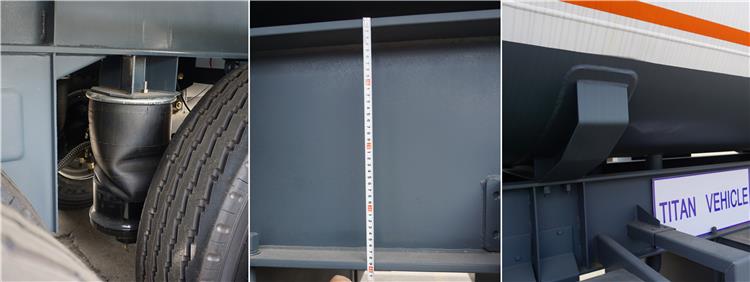

The most obvious feature of the air suspension is its air bag-type air spring. The air spring itself is relatively light in weight, the air medium in the air bag has less friction, and there is almost no noise during operation, and its life is 2-3 times that of the leaf spring.
The advantages of the fuel tanker for fuel delivery air suspension are to adjust the height of the body. When the fuel tanker for fuel delivery is driving at high speed, the body is lowered to the lowest level, which can lower the center of gravity and obtain better stability.
When the fuel tanker for fuel delivery needs to pass through difficult roads such as dirt roads, the body rises to improve the passability. However, when the air spring is used, a rod system that can transmit various forces and moments other than the vertical force must be provided, so the suspension structure is complicated.
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
