Fuel trailers for sale are just a general term for all these types of tanker trucks, which are called differently in different places, depending on the configuration of the medium being transported.
Fuel trailers for sale near me are equipped with multiple anti-wave baffles in the tank. The high-pressure gas leak test is adopted to make the fuel transport trailers for sale tank have the characteristics of high strength, stable center of gravity, and safe and stable vehicle transportation.
42,000 Liters Fuel Trailers for Sale Near Me | Fuel Transport Trailers for Sale
42,000 Liters Fuel Trailers for Sale Near Me | Fuel Transport Trailers for Sale
42,000 Liters Fuel Trailers for Sale Near Me | Fuel Transport Trailers for Sale

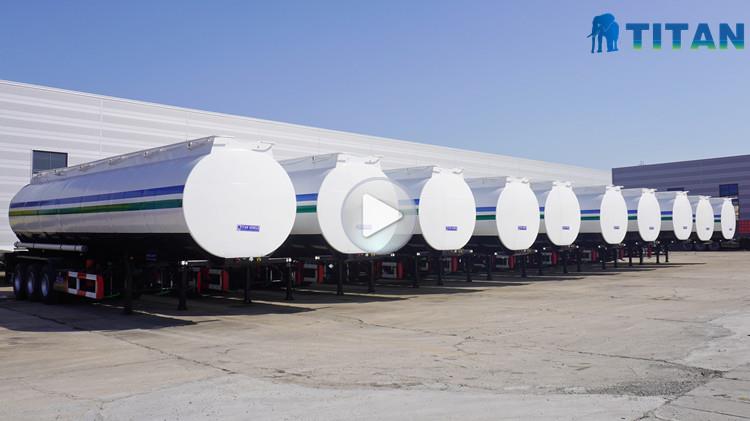

Fuel Transport Trailers for Sale Video
Fuel Tanker Trailer Dimension: 10600mm * 2550mm *3750mm
Tare Weight (semi trailer): About 8000-12800kg
Total volume(L): 420,00 Liters
Tank Body Material: Q235 carbon steel
Fuel Transport Trailers for Sale End plate: Q235 carbon steel
Manhole Cover: Carton steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Discharging Valve: Diameter is 3 or 4 inch
Compartments: Single Compartment
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Fuel Transport Trailers for Sale Axle: 3 axles,13T,FUWA
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Fuel Transport Trailers for Sale Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5Chinese brand
Fuel Semi Trailer Tire: 12.00R22.5
Fuel Semi Trailer ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Fuel Semi Trailer Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
Bottom loading and unloading system: Pneumatically controlled bottom valve, API joint valve.
Oil and gas recovery system: oil and gas recovery joint, oil and gas recovery valve, side plate ventilation valve.
Anti-overflow system: sensor, socket control system.
Fuel transport trailers for sale on-board pump loading and unloading system: pump the liquid in the tank into the storage tank higher than the tanker, and suck the liquid in the storage tank lower than the fuel transport trailers for sale into the tank
Pump pipeline function: The pump in and pump out functions are realized through the opening and closing of steel pipelines and different ball valves.
Connect the outlet of the tank to the inlet and outlet of the pump through a hose to realize the pump in and pump out functions.
Valve and emergency bottom valve: fuel trailers for sale near me The discharge valve should be a series double-channel valve, one of which is a built-in valve and installed at the bottom of the tank. Avoid increasing the severity of the accident due to leakage.
Emergency bottom valve: installed at the inlet of the pipeline at the bottom of the fuel transport trailers for sale tank. When the unloading pipeline encounters accidental damage, the emergency bottom valve is still closed and the medium will not leak.

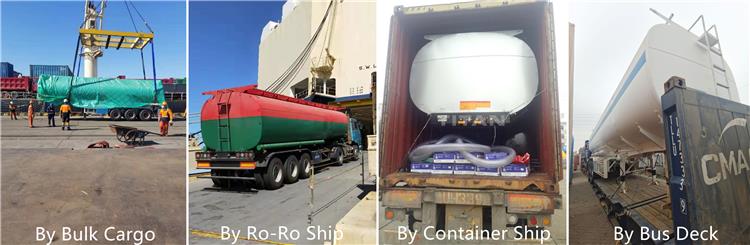

Fuel trailers for sale can be transported in containers. The container transportation cycle is short, and customers can receive the goods faster. Container shipping guarantees that the customer receives the product in perfect condition.
If the customer insists that Fuel trailers for sale be shipped in bulk, we will spray a thick layer of wax on the trailer to reduce the damage caused by the Fuel trailers for sale being washed by sea water during transportation. After the trailer is sprayed with wax, we will wrap the body with a rain cloth, which is also to reduce the corrosion of the trailer by seawater during transportation.
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
