The tank body of the oil tanker trailer includes a head and a tank. The tank barrel is wound and welded by steel plate. The head is integrated by the spinning stamping process.

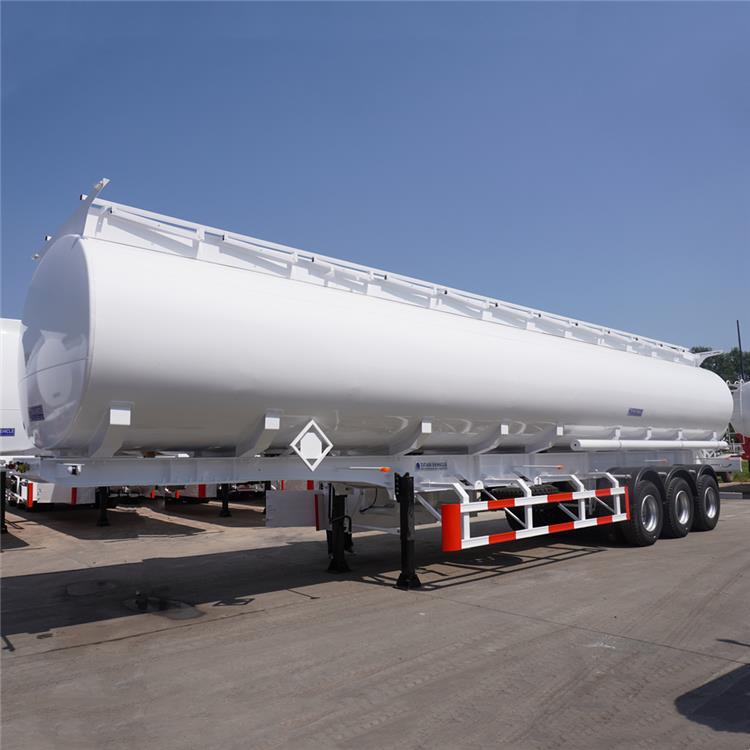

38000 Lts Oil Tanker Trailer for Sale In Guinea
38000 Lts Oil Tanker Trailer for Sale In Guinea
38000 Lts Oil Tanker Trailer for Sale In Guinea
38000 Lts Oil Tanker Trailer for Sale In Guinea
38000 Lts Oil Tanker Trailer for Sale In Guinea
38000 Lts Oil Tanker Trailer for Sale In Guinea
38000 Lts Oil Tanker Trailer for Sale In Guinea
38000 Lts Oil Tanker Trailer for Sale In Guinea
38000 Lts Oil Tanker Trailer for Sale In Guinea
Dimension: 11500mm*2500mm*3700mm (the exact size depends on the final design.)
Total volume(L): 38000L
Tank Body Material: 5mm Q235 carbon steel
End plate: 6mm Q235 carbon steel
Manhole Cover: Carton steel
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material

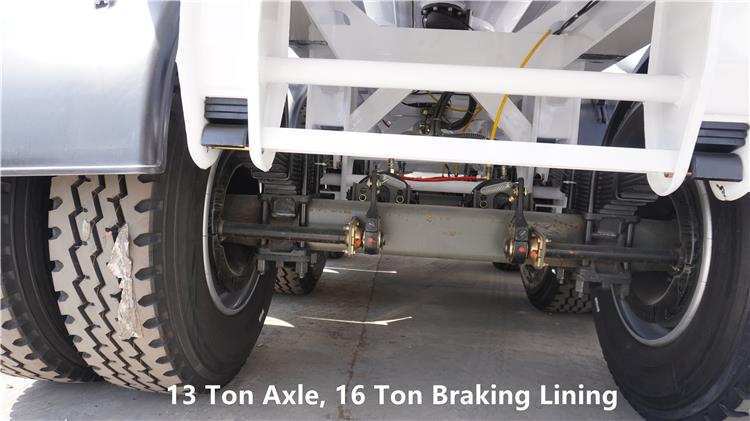

Axle: 3 axles,12T/13T/16T, BPW/ FUWA/ TITAN brand

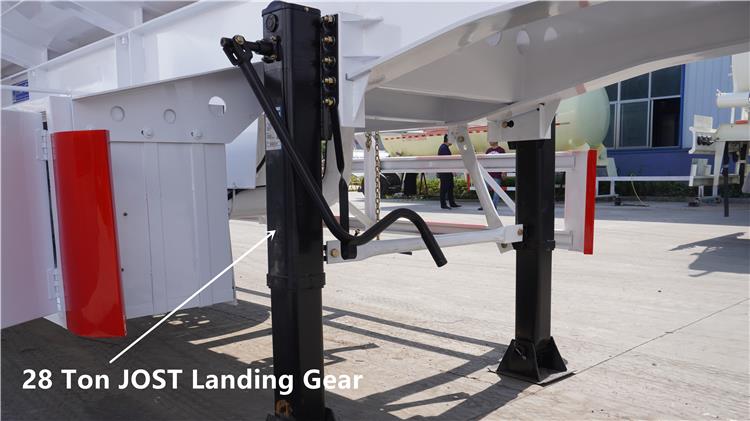

Landing Gear: JOST or China brand 28T

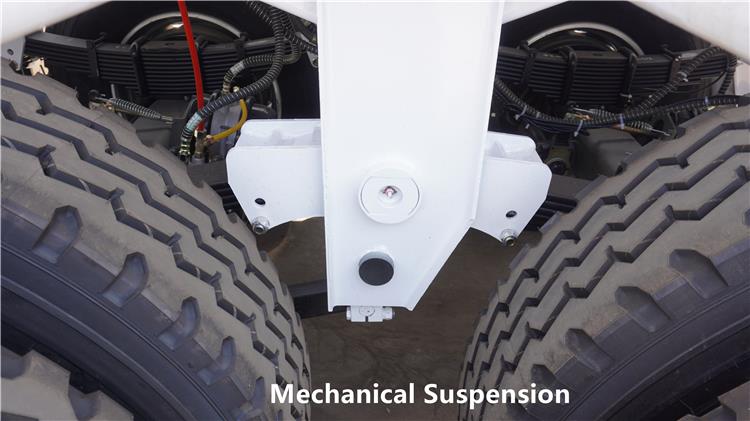

Suspension: Mechanical suspension

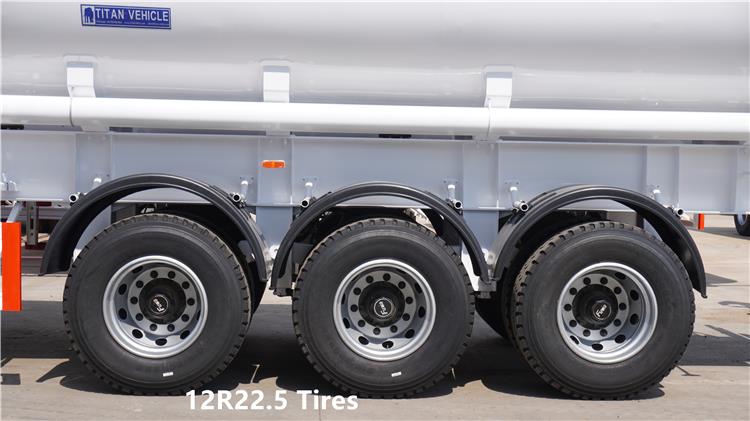

Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional

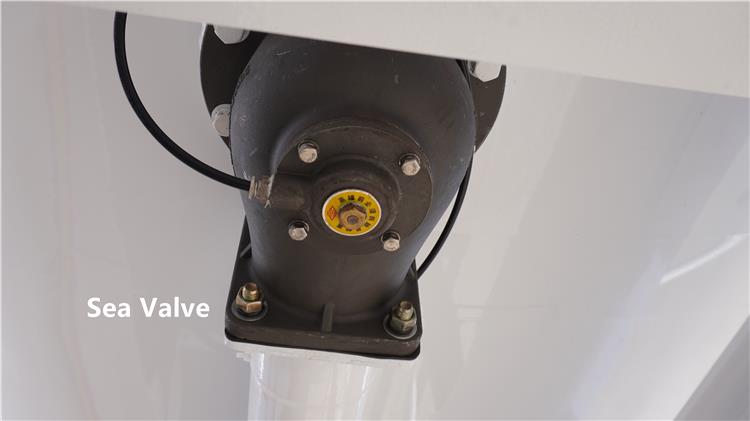

Discharging Valve: Diameter is 3 or 4 inch
Compartments: 5 Compartment
Discharging Pipe: 4-inch rubber hose, 2pcs, 6m/each
