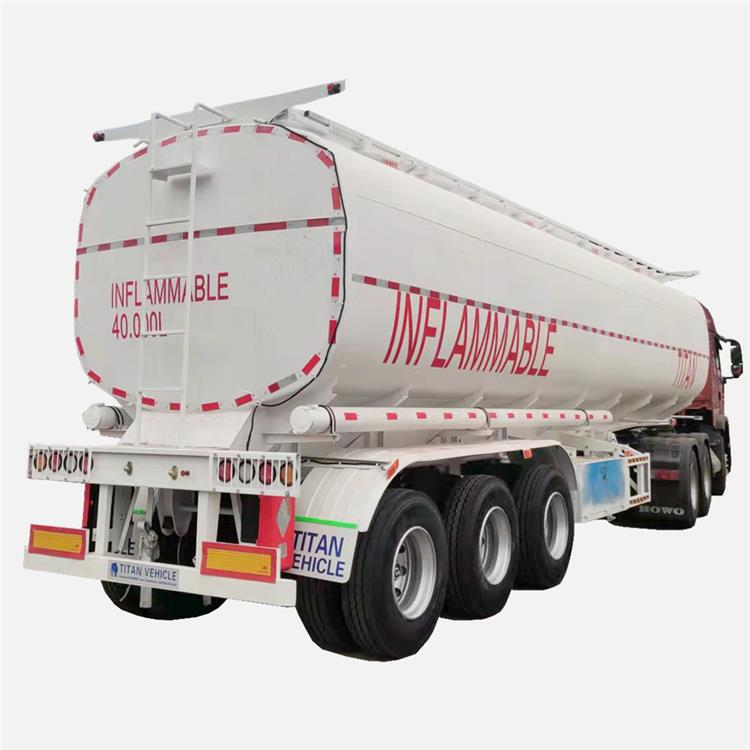

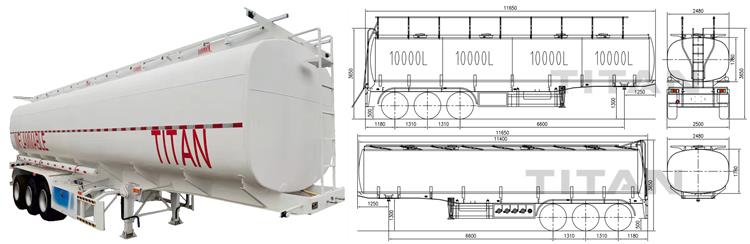

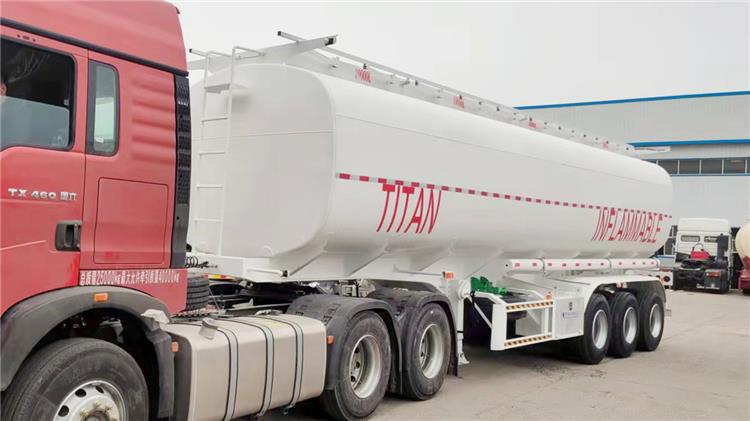

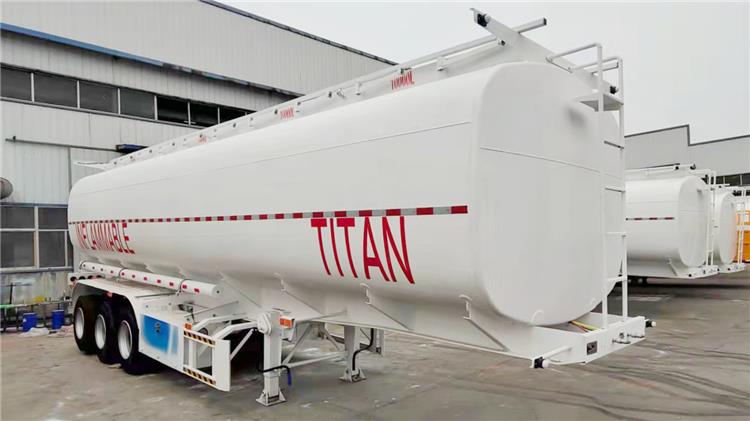

The 35,000 litres petrol tanker trailer is a tanker truck connected to the towing section through a towing head. Compared with the ordinary one-piece tanker, the 35,000 Litres petrol tanker trailer effectively improves transportation efficiency. In the case of the same tonnage, reduce transportation costs and save fuel consumption.
The components of the petrol tanker trailer are the supporting frame chassis and the running part.
35,000 Litres Petrol Tanker Trailer | Petrol Tanker Price
35,000 Litres Petrol Tanker Trailer | Petrol Tanker Price
35,000 Litres Petrol Tanker Trailer | Petrol Tanker Price
Tare Weight (Semi Trailer): About 8000-12800kg
Total volume(l): 45000 liters
Tank Body Material: 5mm or 6mm/Q235 carbon steel
End plate: 5mm or 6mm/Q235 carbon steel
Manhole Cover: Carton steel

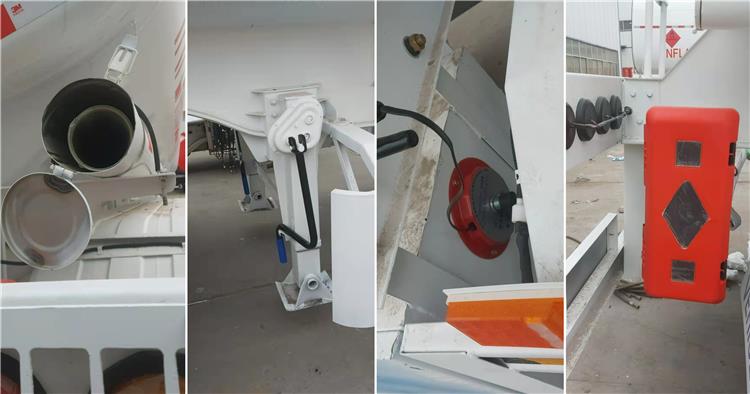

Discharging Valve: Diameter is 3 or 4 inch
Compartments: 4 Compartments
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Axle: 3 axles,12T/13T/16T,BPW/ FUWA/ TITAN brand
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Suspension: Mechanical suspension /Germany or America type /Air Suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5/8.00-20/8.5-20 Chinese brand
Tire: 12.00R22.5/315.80R22.5/11.00R20/12.00R20 brand can be optional
ABS: Optional
Painting: Sandblasted, Anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
Accessories: One standard Toolbox
Shipping Terms: By bulk cargo, RORO or 40HQ containers
Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
